Single-sided Cantilever Rack KR3000 / 99" H x 63" W / 4" Lip / 4 Levels / 20" Cantilever Arm Depth / 8 Arms / 3,300 lbs Weight Capacity / 1,100 lbs per Arm
- Includes upright, foot part, cantilever arms, cross braces, diagonal brace and hardware.
- Ideal for storing long goods such as lumber, pipes or profiles.
- Attaches to starter unit to create a continuous rack run.
- Loadable up to 3,300 lbs per upright
- Very quick and easy to assemble
- Cantilevers can be attached individually in increments of 2"
- Includes upright, foot part, cantilever arms, cross braces, diagonal brace and hardware.
- Ideal for storing long goods such as lumber, pipes or profiles.
- Attaches to starter unit to create a continuous rack run.
- Loadable up to 3,300 lbs per upright
- Very quick and easy to assemble
- Cantilevers can be attached individually in increments of 2"
-
ModelKR3000
-
Beam length590.6 in
-
Max. load per stand3,307 lbs
-
Versionsingle-sided
-
Number of levels4
-
Rack layerwithout
-
Surfaceindustrial painted finish
-
Width62.99 in
-
Depth31.5 in
-
Height98.43 in
-
Range of applicationIndoor
-
Axle dimension59 in
- 1 x Single-sided Cantilever Rack KR3000 / 99" H x 63" W / 4" Lip / 4 Levels / 20" Cantilever Arm Depth / 8 Arms / 3,300 lbs Weight Capacity / 1,100 lbs per Arm
- 2 x uprights with 8 cantilever arms (type: KR3000)
- 3 x cross braces (type: KR3000)
- 2 x diagonal braces (type: KR3000)
- All accessories, such as foot plates, screws, nuts and all assembly material
- Includes upright, foot part, cantilever arms, cross braces, diagonal brace and hardware.
- Ideal for storing long goods such as lumber, pipes or profiles.
- Attaches to starter unit to create a continuous rack run.
- Loadable up to 3,300 lbs per upright
- Very quick and easy to assemble
- Cantilevers can be attached individually in increments of 2"
The TOPREGAL cantilever racks KR3000 feature a particularly robust, modular and flexible design.

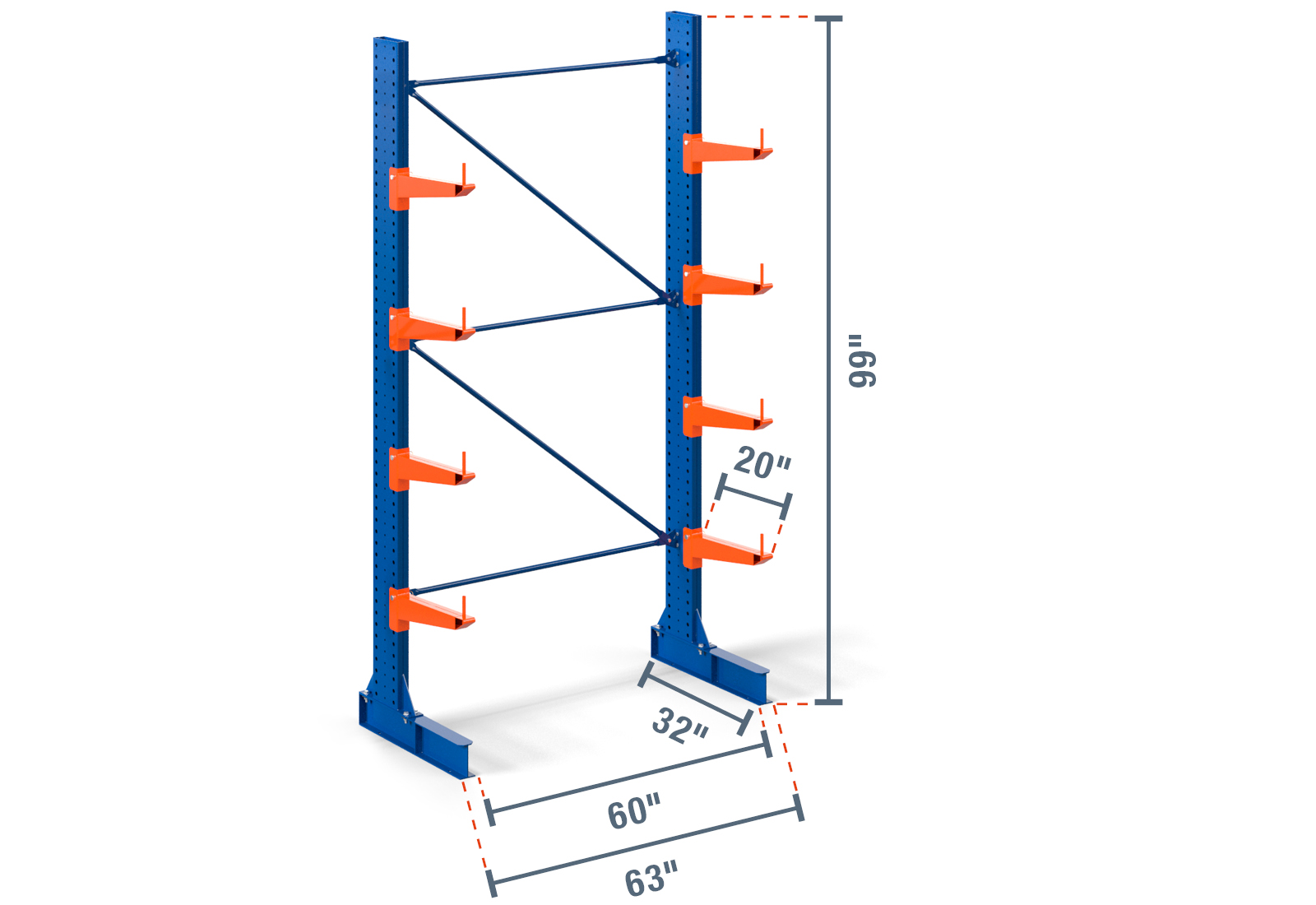

This cantilever rack in a single-sided design with a width of 63" is 98 7/16" high, with an overall depth of 31 1/2", and features 4 cantilever levels, with a cantilever depth of 19 11/16". The individual uprights are screwed together with three cross struts and two diagonal struts. The maximum load per cantilever is 1,100 lbs. The cantilevers can be attached at individual heights in increments of 2" and are secured with safety bolts and pins. The foot bases can also be used as a storage level (depending on the goods). To protect the load from accidentally slipping, roll-off protection can be attached at the end of each cantilever. This is included as standard in the delivery volume.
The upright load is maximum 3,300 lbs. The axial dimension (inner dimension between two uprights) is generally 59 1/16".
The rack is secured to the floor at each foot part with floor fixtures, each with 4 bolt anchors (2/5 in x 4 in). The material required for assembly as well as assembly instructions are included in the delivery volume.
Best of all, you can extend your rack in terms of width or number of levels at any time.
This rack is powder-coated in the signal colours of blue and orange (painted). This makes it particularly suitable for use in warehouses, dry indoor areas, etc.
This cantilever rack of the KR3000 type has no shelf support.
