Add-on for single-sided Cantilever Rack KR3000 / 99" H x 63" W / 4" Lip / 4 Levels / 4 Arms / 20" Cantilever Arm Depth / 3,300 lbs Weight Capacity / 1,100 lbs per Arm
- Includes upright, foot part, cantilever arms, cross braces, diagonal brace and hardware.

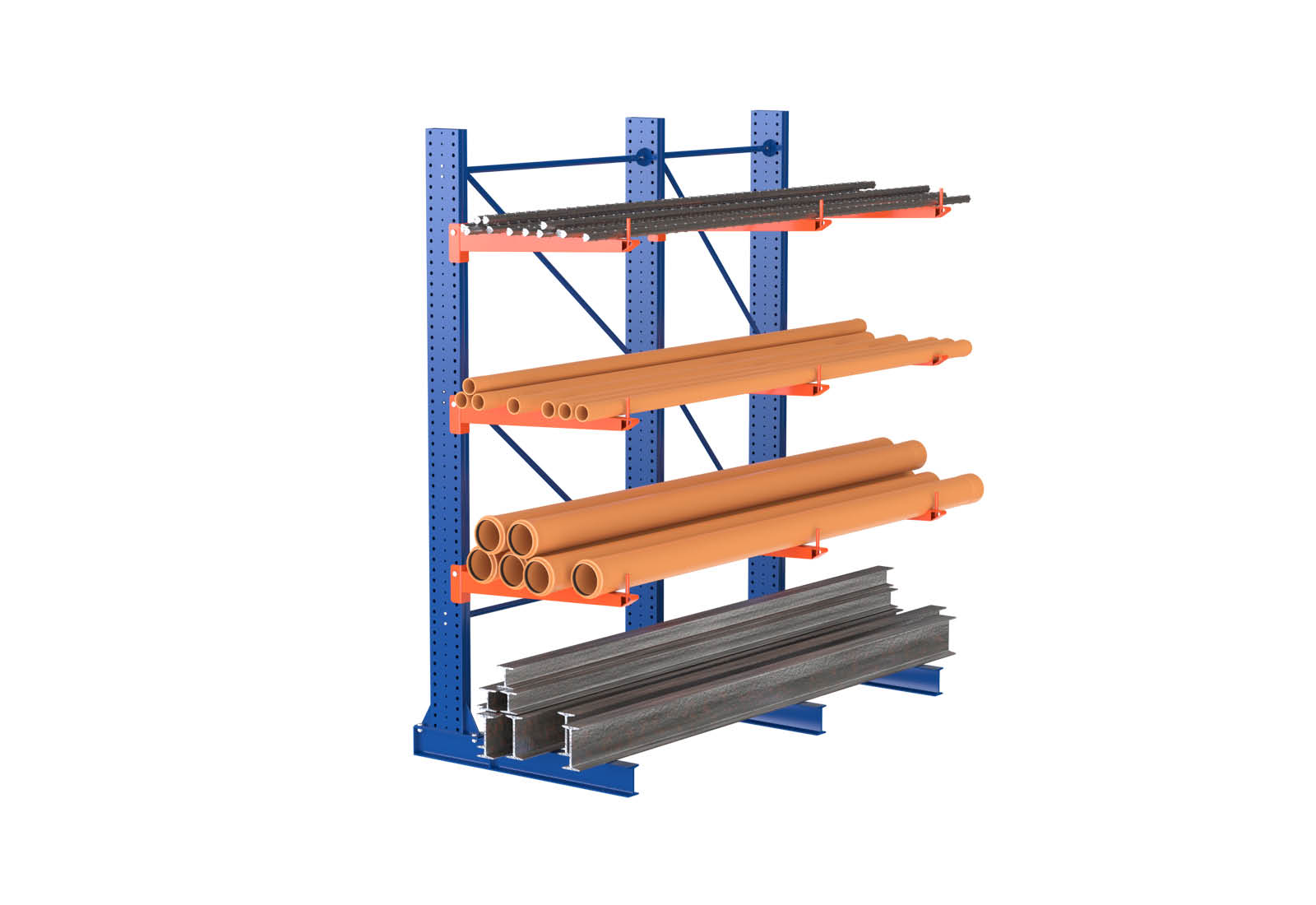

- Ideal for storing long goods such as lumber, pipes or profiles.
- Attaches to starter unit to create a continuous rack run.
- Loadable up to 3,300 lbs per upright.
- Very quick and easy to assemble.

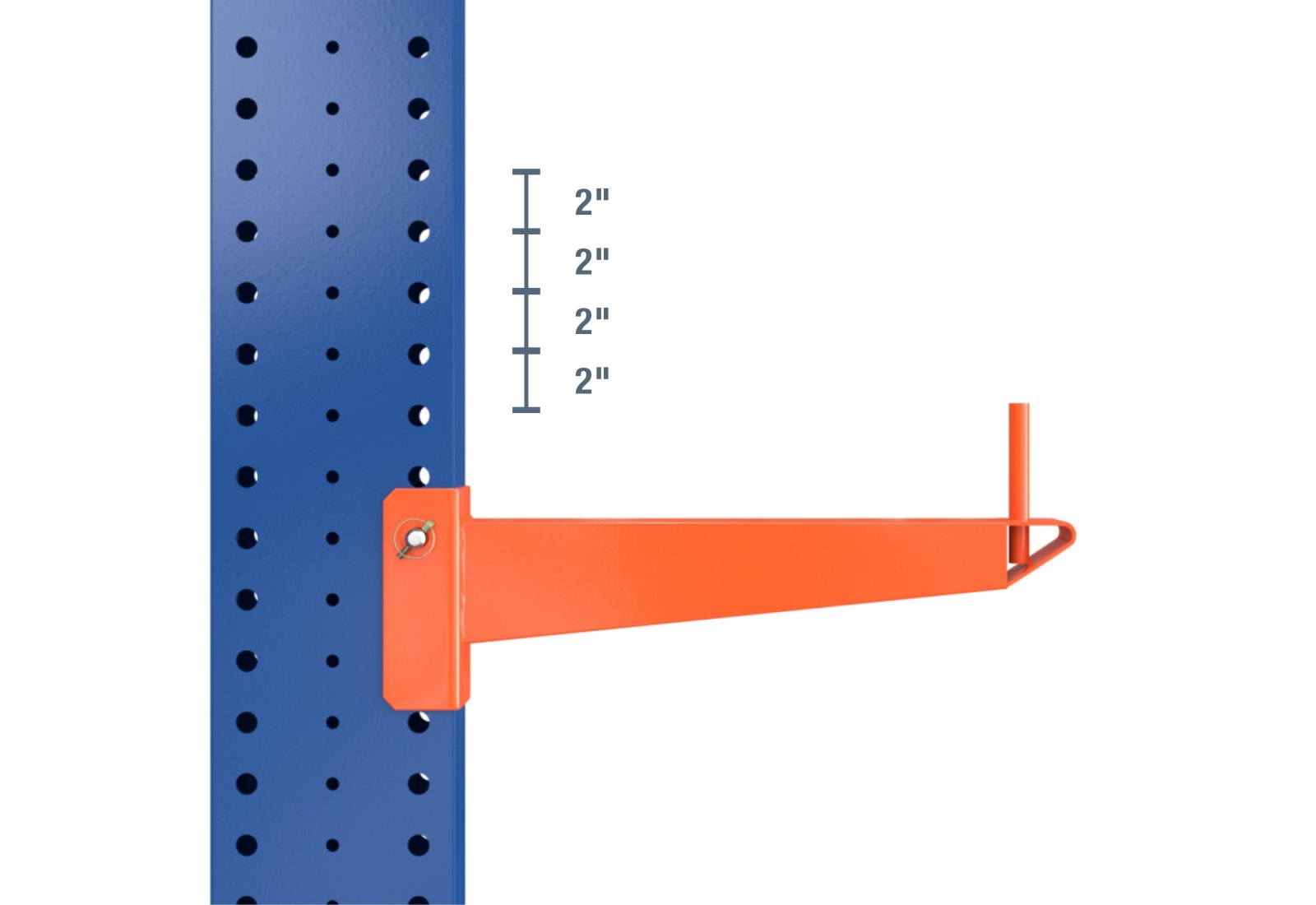

- Cantilevers can be attached individually in increments of 2".
- Includes upright, foot part, cantilever arms, cross braces, diagonal brace and hardware.
- Ideal for storing long goods such as lumber, pipes or profiles.
- Attaches to starter unit to create a continuous rack run.
- Loadable up to 3,300 lbs per upright.
- Very quick and easy to assemble.
- Cantilevers can be attached individually in increments of 2".
-
ModelKR3000
-
Beam length590.6 in
-
Max. load per stand3,307 lbs
-
Versionsingle-sided
-
Number of levels4
-
Rack layerwithout
-
Surfaceindustrial painted finish
-
Width1,600 in
-
Depth19.69 in
-
Height2,500 in
-
Range of applicationIndoor
-
Axle dimension59 in
- 1 x Add-on for single-sided Cantilever Rack KR3000 / 99" H x 63" W / 4" Lip / 4 Levels / 4 Arms / 20" Cantilever Arm Depth / 3,300 lbs Weight Capacity / 1,100 lbs per Arm
- 1 x upright with 4 cantilever arms (type: KR3000)
- 3 x cross braces (type: KR3000)
- 2 x diagonal braces (type: KR3000)
- All accessories, such as foot plates, screws, nuts and all assembly material
- Includes upright, foot part, cantilever arms, cross braces, diagonal brace and hardware.
- Ideal for storing long goods such as lumber, pipes or profiles.
- Attaches to starter unit to create a continuous rack run.
- Loadable up to 3,300 lbs per upright.
- Very quick and easy to assemble.
- Cantilevers can be attached individually in increments of 2".
Overview

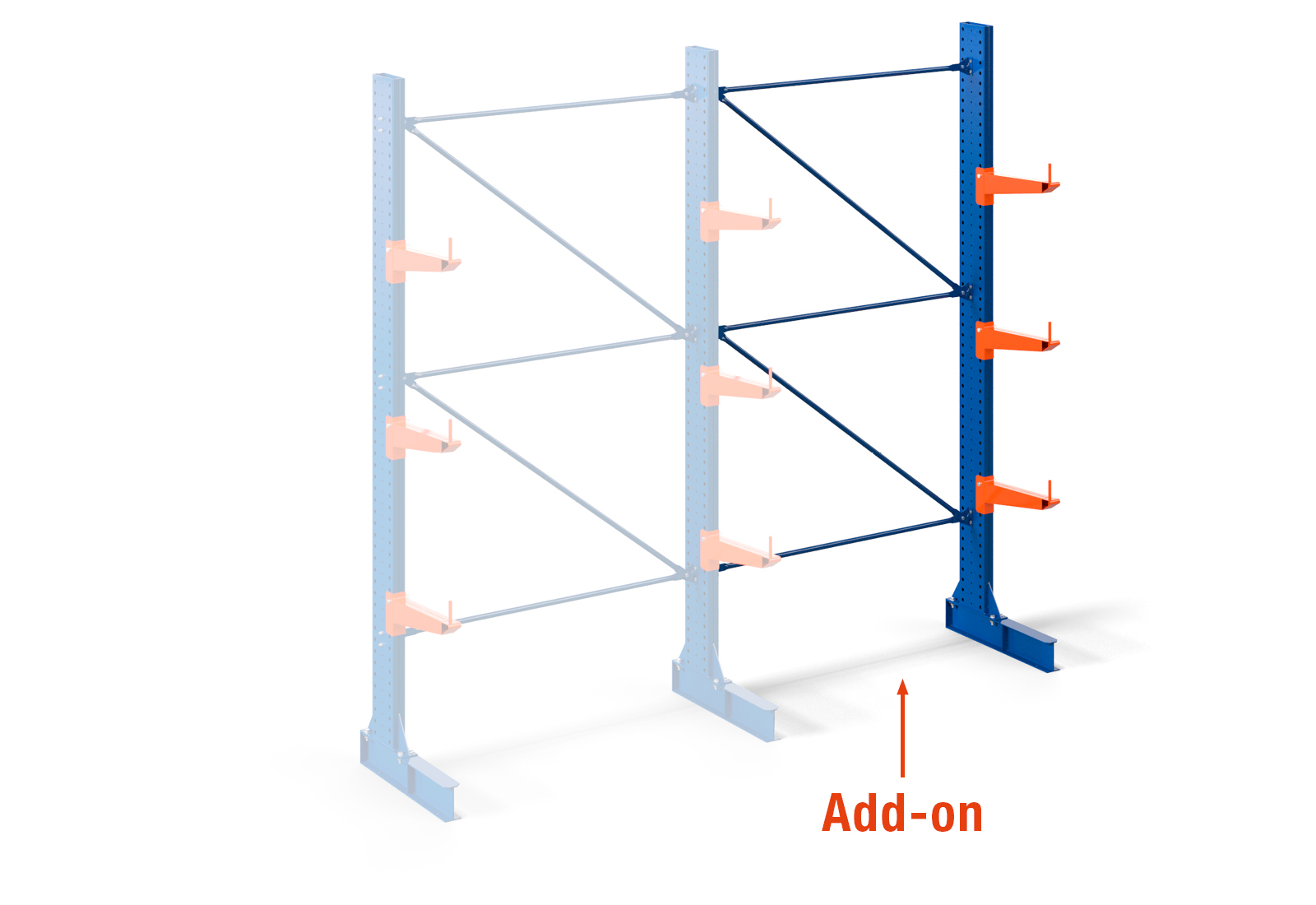

Expand your single-sided KR3000 cantilever rack with this add-on unit to increase storage capacity for long, bulky or irregular materials. Designed for seamless integration with the single-sided KR3000 starter unit (sold separately), it provides a reliable storage solution for warehouses handling lumber, piping, steel profiles or panel goods.
Single-sided: The add-on consists of a 98 7/16" upright with four cantilever arms featuring a 19 11/16" arm depth and a usable depth of 17 3/4", a 31 1/2" base, and 59 1/16" bracing to support the overall structure.
Easy Assembly and Integration in Your Warehouse
• Individually mountable cantilever arms in a grid of 2".
• Durable steel construction provides long-lasting stability and reliable rack expansion.
• Straightforward installation with all necessary mounting bolts included.

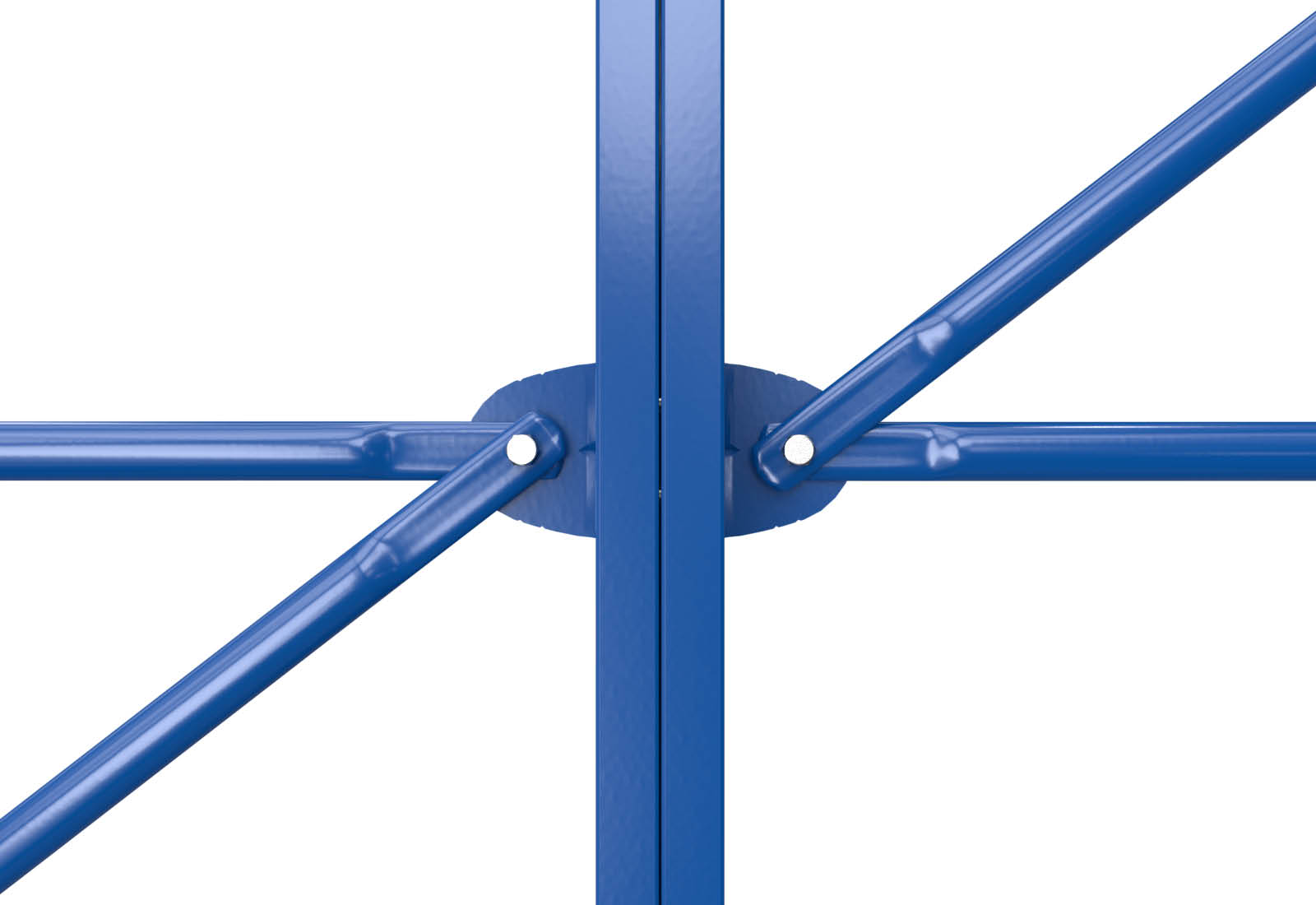

• Reinforced upright connections with horizontal and diagonal bracing for added structural support.
• Secure floor anchoring ensures proper stability and safe material handling.
Additional Details
• Assembly instructions included
• Capacity labels available upon request

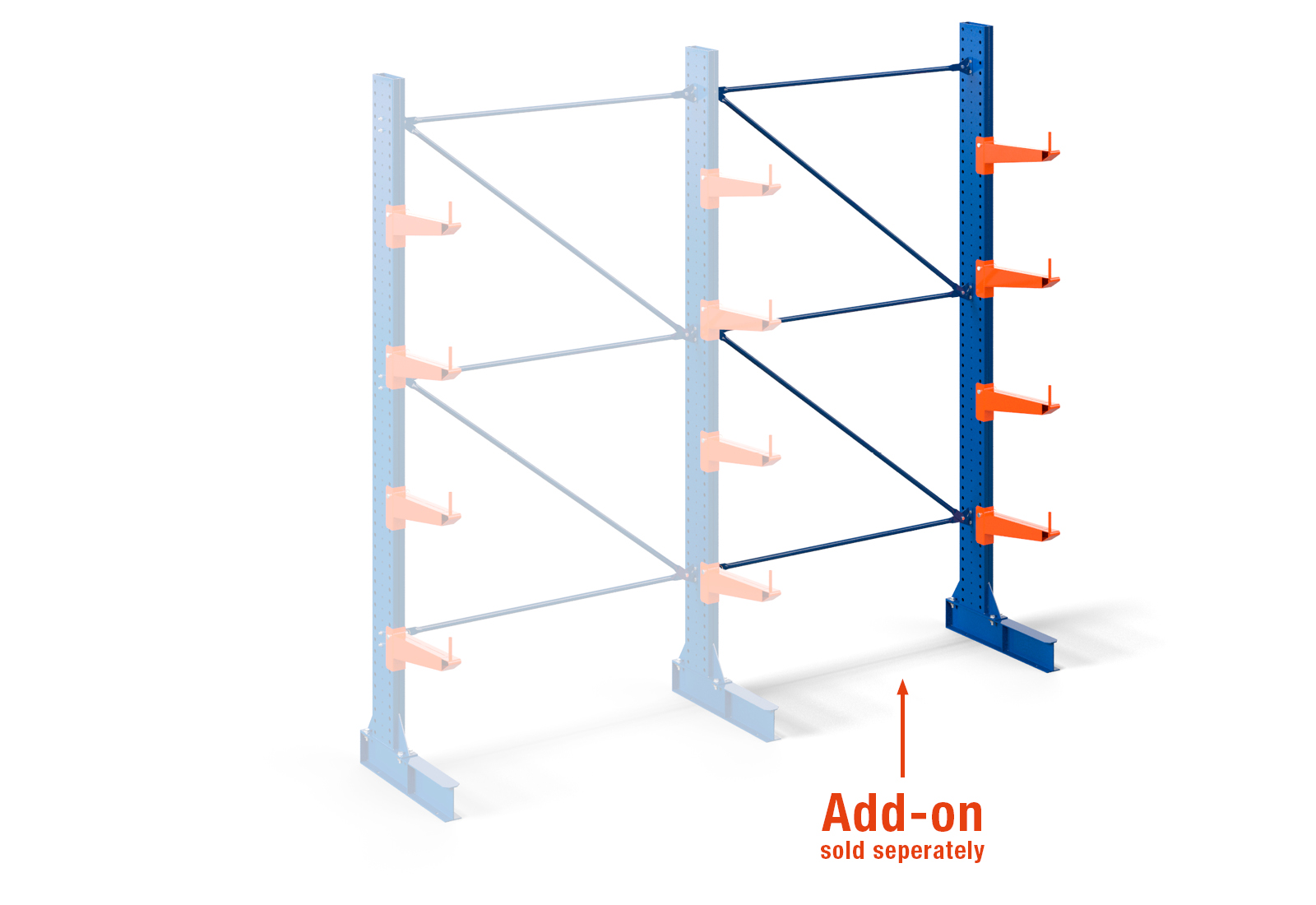

• Single-sided KR3000 starter units sold separately
Extend your single-sided KR3000 cantilever rack efficiently and cost-effectively with this add-on unit.
For configuration assistance, capacity labels, or precise measurement guidance tailored to your installation, please contact our team.
This cantilever rack of the KR3000 type has no shelf support.
