Double-sided Cantilever Rack KR2500 / 79" H x 52" W / 2" Lip / 5 Levels / 20" Cantilever Arm Depth / 11,000 lbs Weight Capacity / 550 lbs per Arm
- Ideal for storage of long goods
- Can be loaded with up to 5,500 lbs per upright
- Welded feet and arms for a robust construction
- Very quick and easy to assemble
- Ideal for storage of long goods
- Can be loaded with up to 5,500 lbs per upright
- Welded feet and arms for a robust construction
- Very quick and easy to assemble
-
ModelKR2500
-
Max. load per stand5,512 lbs
-
Versiondouble-sided
-
Number of levels5
-
Rack layerwithout
-
Arm spacing11 in
-
Surfaceindustrial painted finish
-
Width51.18 in
-
Height78.74 in
-
Axle dimension47 in
- 1 x Double-sided Cantilever Rack KR2500 / 79" H x 52" W / 2" Lip / 5 Levels / 20" Cantilever Arm Depth / 11,000 lbs Weight Capacity / 550 lbs per Arm
- 2 x upright for cantilever rack (type: KR2500)
- 1 x field for cantilever rack (type: KR2500)
- All accessories, such as foot plates, screws, nuts and all assembly material
- Ideal for storage of long goods
- Can be loaded with up to 5,500 lbs per upright
- Welded feet and arms for a robust construction
- Very quick and easy to assemble

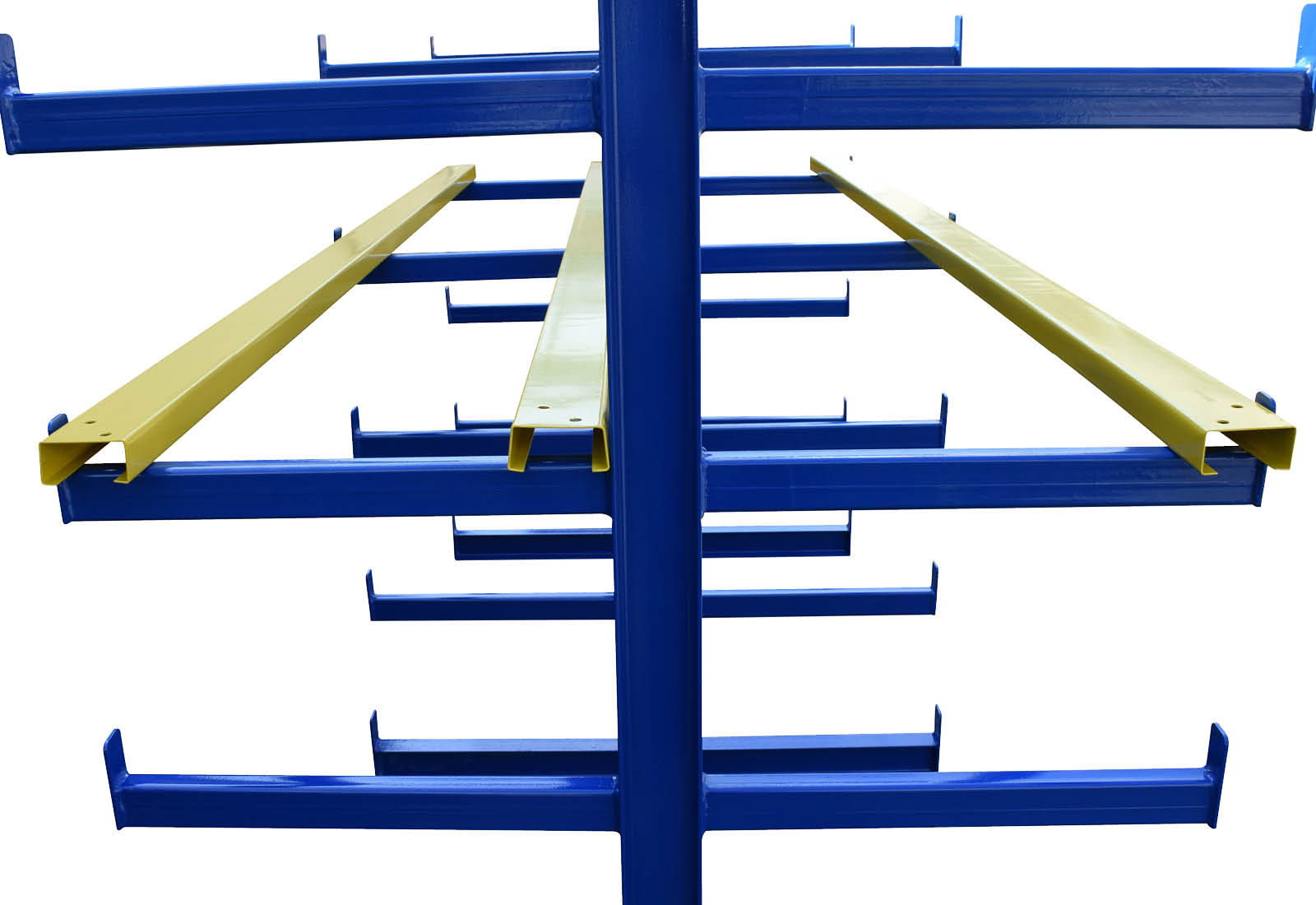

This extra-robust cantilever rack with a width of 52" is 79" high and has 5 levels with a cantilever depth of 20 in. Thanks to the double-sided design with welded-on cantilever arms, you can load each upright with a maximum of 5,512 lbs, where each cantilever has a maximum load of 551 lbs.

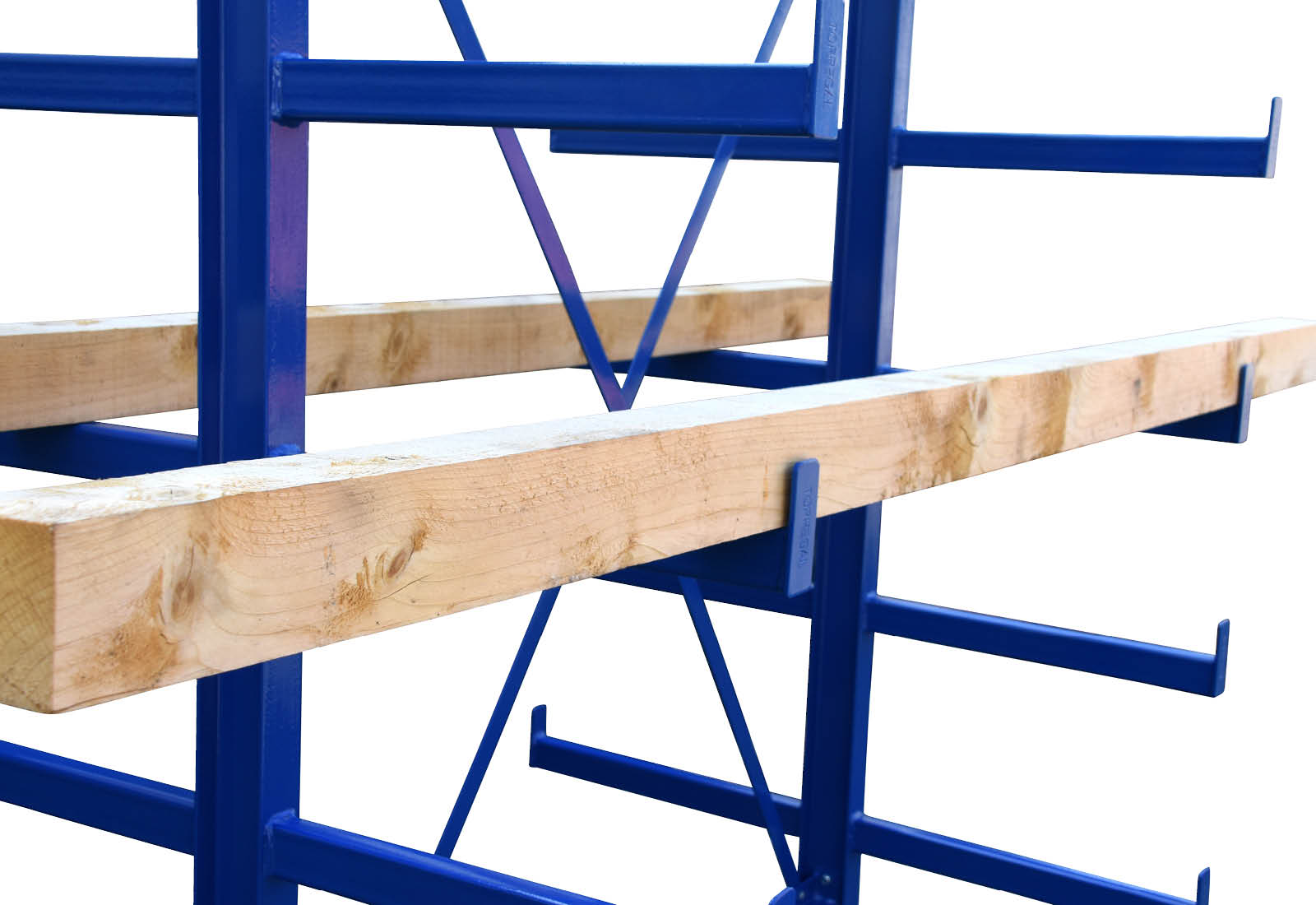

The 20 in deep cantilevers in the signal colour of blue are ideal for the storage of long goods.

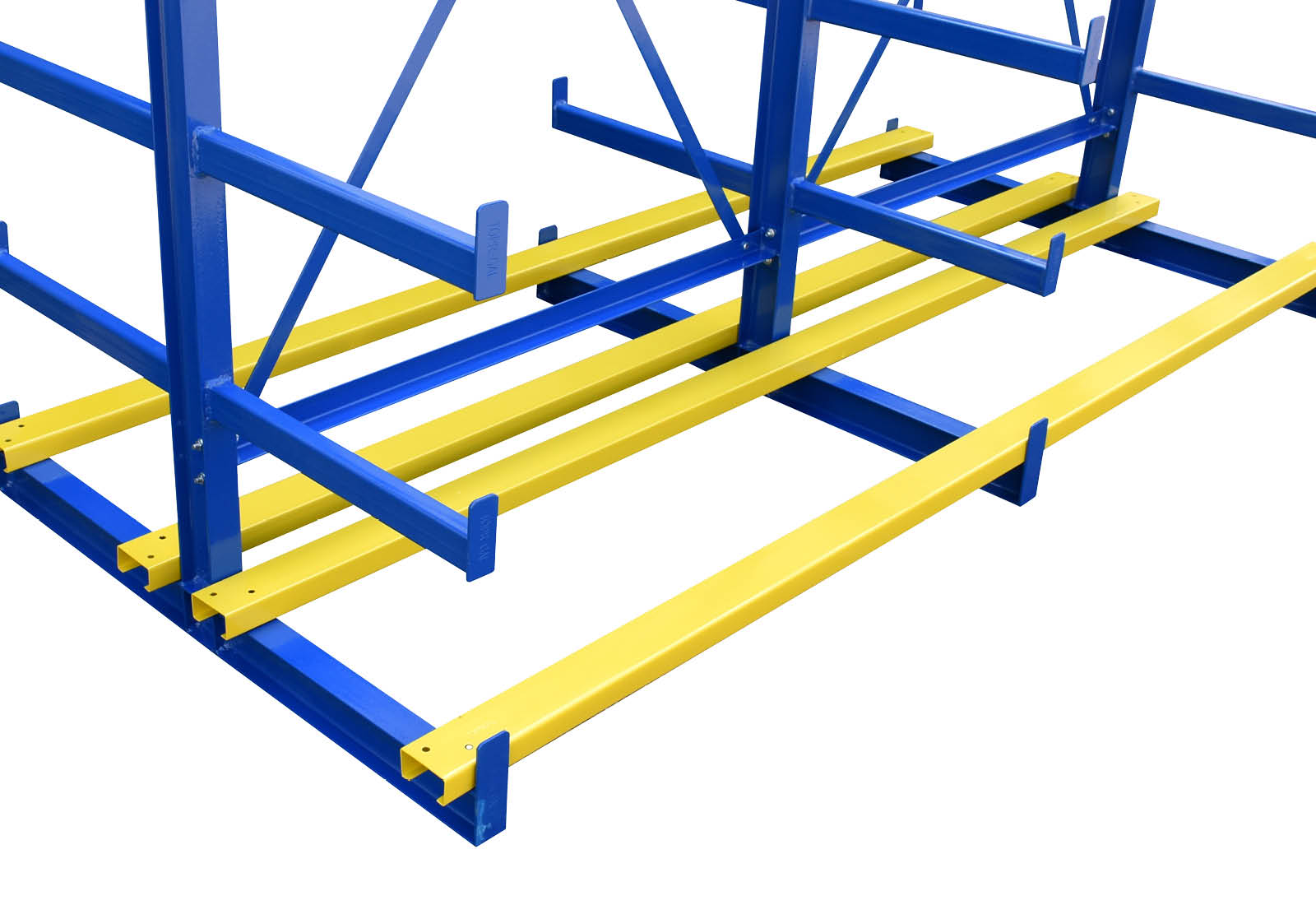

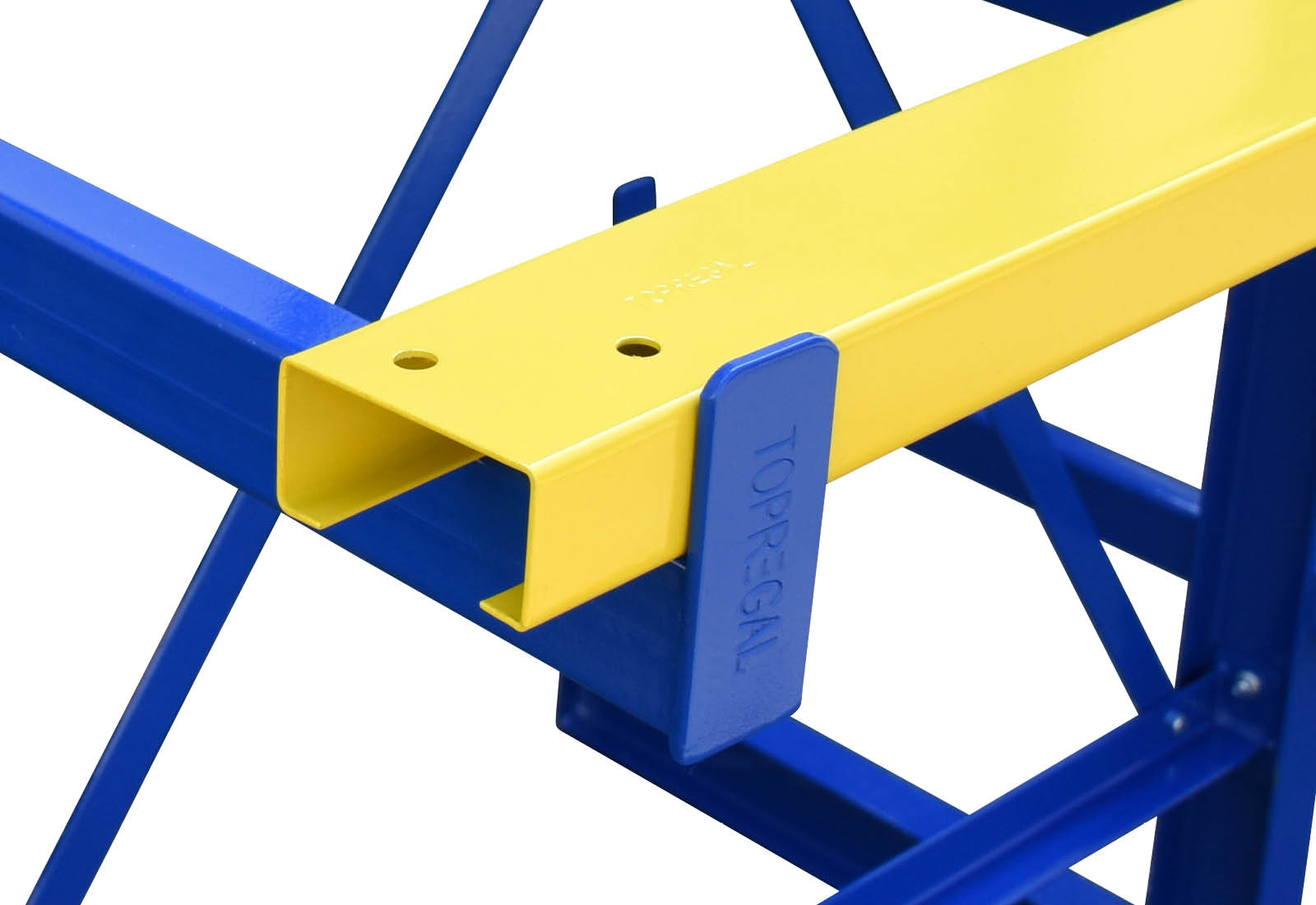

The individual uprights are screwed together with two cross struts and diagonal struts (axial dimension 47 in). Each cantilever has a width of 1 in and features a 2 in-high roll-off protection. The 44.5 in-long foot part has a usable depth of 20 in on each side, a width of 2 in and a 3 in-high roll-off protection. This means the foot parts can also be used as a storage level.
The distance between the foot level and the first cantilever level, as well as the cantilever distance between the remaining cantilever levels, is 11 in.
The rack is secured to the floor at each foot part with floor fixtures, each with 4 bolt anchors (2/5 in x 4 in).
