Add-on for double-sided Cantilever Rack KR2500 / 79" H x 48" W / 2" Lip / 5 Levels / 20" Cantilever Arm Depth / 11,000 lbs Weight Capacity / 550 lbs per Arm
- Includes upright, foot part, cantilever arms, cross braces, diagonal brace and hardware.
- Ideal for storing long goods such as lumber, pipes or profiles.
- Attaches to starter unit to create a continuous rack run.
- Loadable up to 5,500 lbs per upright
- Welded feet and arms for a robust construction
- Very quick and easy to assemble
- Includes upright, foot part, cantilever arms, cross braces, diagonal brace and hardware.
- Ideal for storing long goods such as lumber, pipes or profiles.
- Attaches to starter unit to create a continuous rack run.
- Loadable up to 5,500 lbs per upright
- Welded feet and arms for a robust construction
- Very quick and easy to assemble
-
ModelKR2500
-
Max. load per stand5,512 lbs
-
Versiondouble-sided
-
Number of levels5
-
Rack layerwithout
-
Arm spacing11 in
-
Surfaceindustrial painted finish
-
Height78.74 in
-
Axle dimension47 in
- 1 x Add-on for double-sided Cantilever Rack KR2500 / 79" H x 48" W / 2" Lip / 5 Levels / 20" Cantilever Arm Depth / 11,000 lbs Weight Capacity / 550 lbs per Arm
- 1 x upright with 5 cantilever arms (type: KR2500)
- 2 x cross braces (type: KR2500)
- 2 x diagonal braces (type: KR2500)
- All accessories, such as foot plates, screws, nuts and all assembly material
- Includes upright, foot part, cantilever arms, cross braces, diagonal brace and hardware.
- Ideal for storing long goods such as lumber, pipes or profiles.
- Attaches to starter unit to create a continuous rack run.
- Loadable up to 5,500 lbs per upright
- Welded feet and arms for a robust construction
- Very quick and easy to assemble
Overview

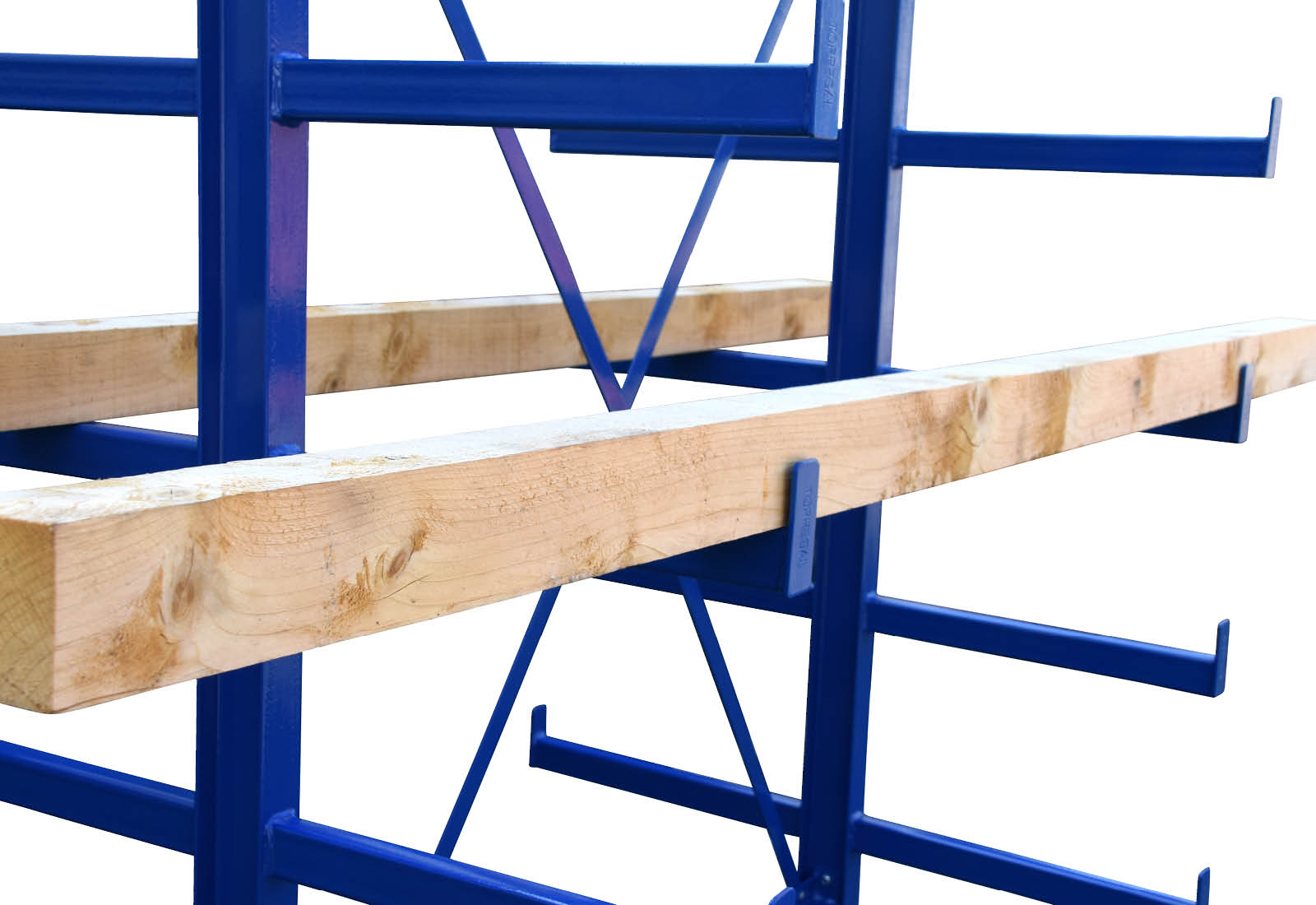

Expand your double-sided KR2500 cantilever rack with this add-on unit to increase storage capacity on both sides for long, bulky or irregular materials. Designed for seamless integration with the double-sided KR2500 starter unit (sold separately), it provides a reliable storage solution for warehouses handling lumber, piping, steel profiles or panel goods.

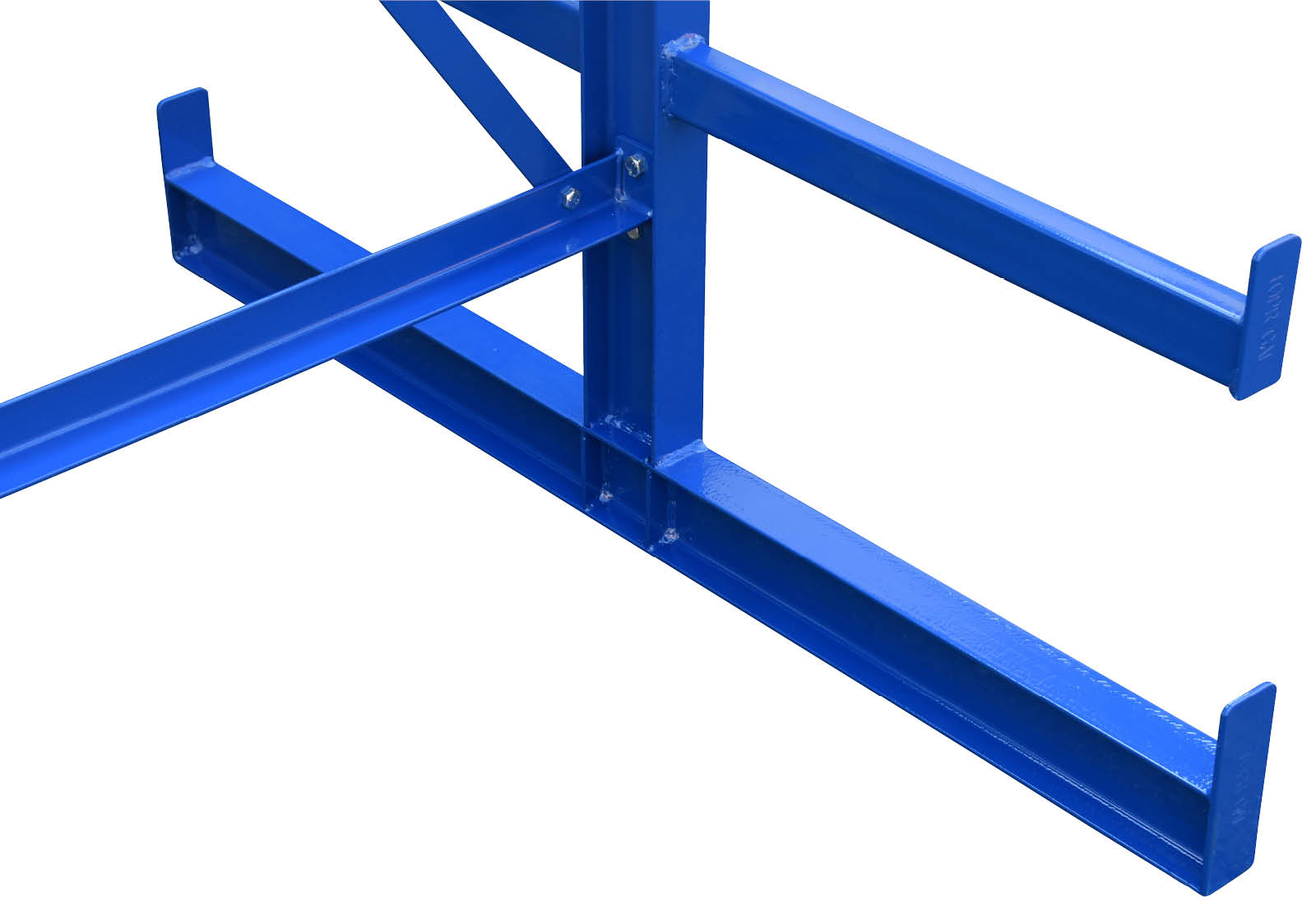

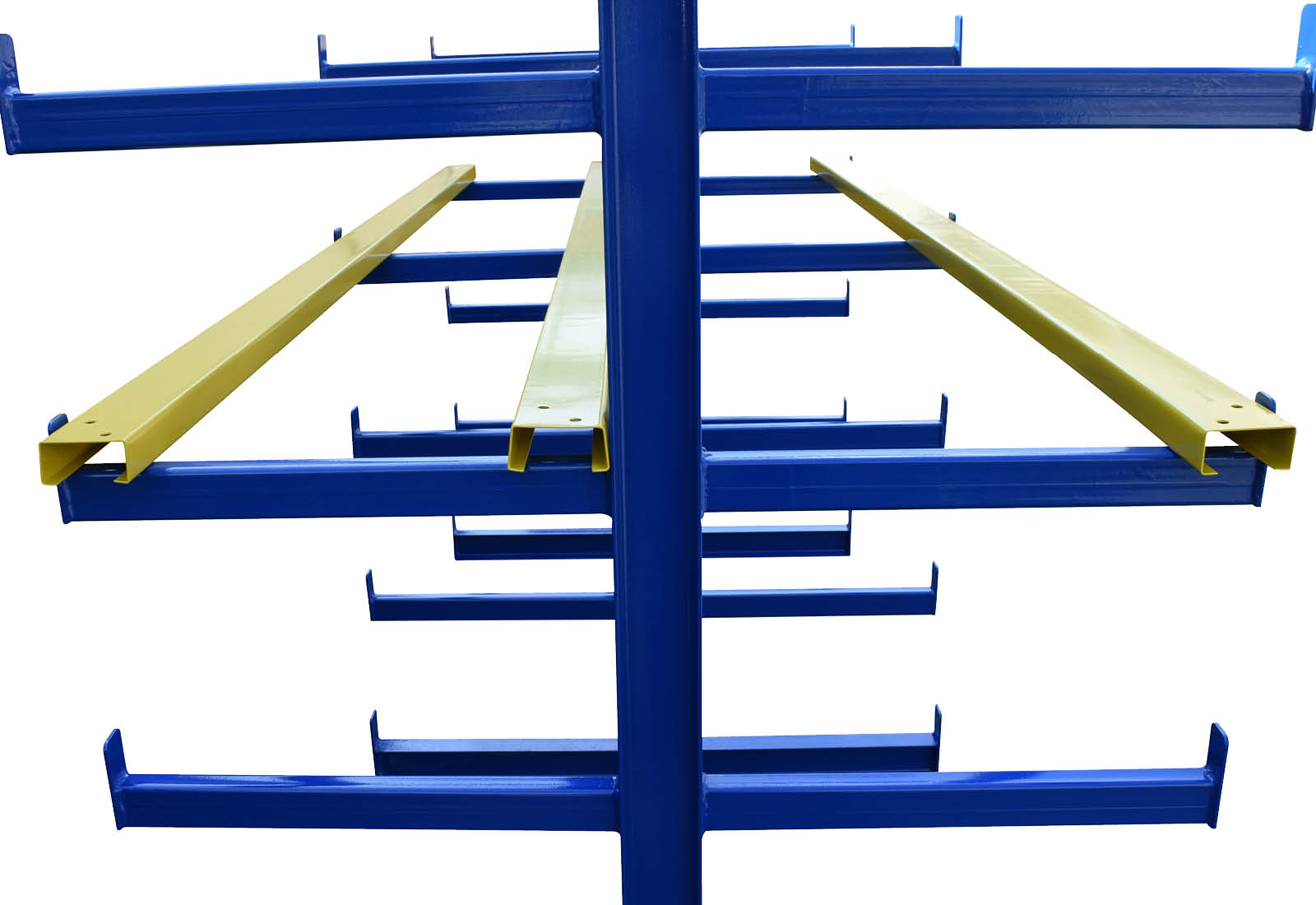

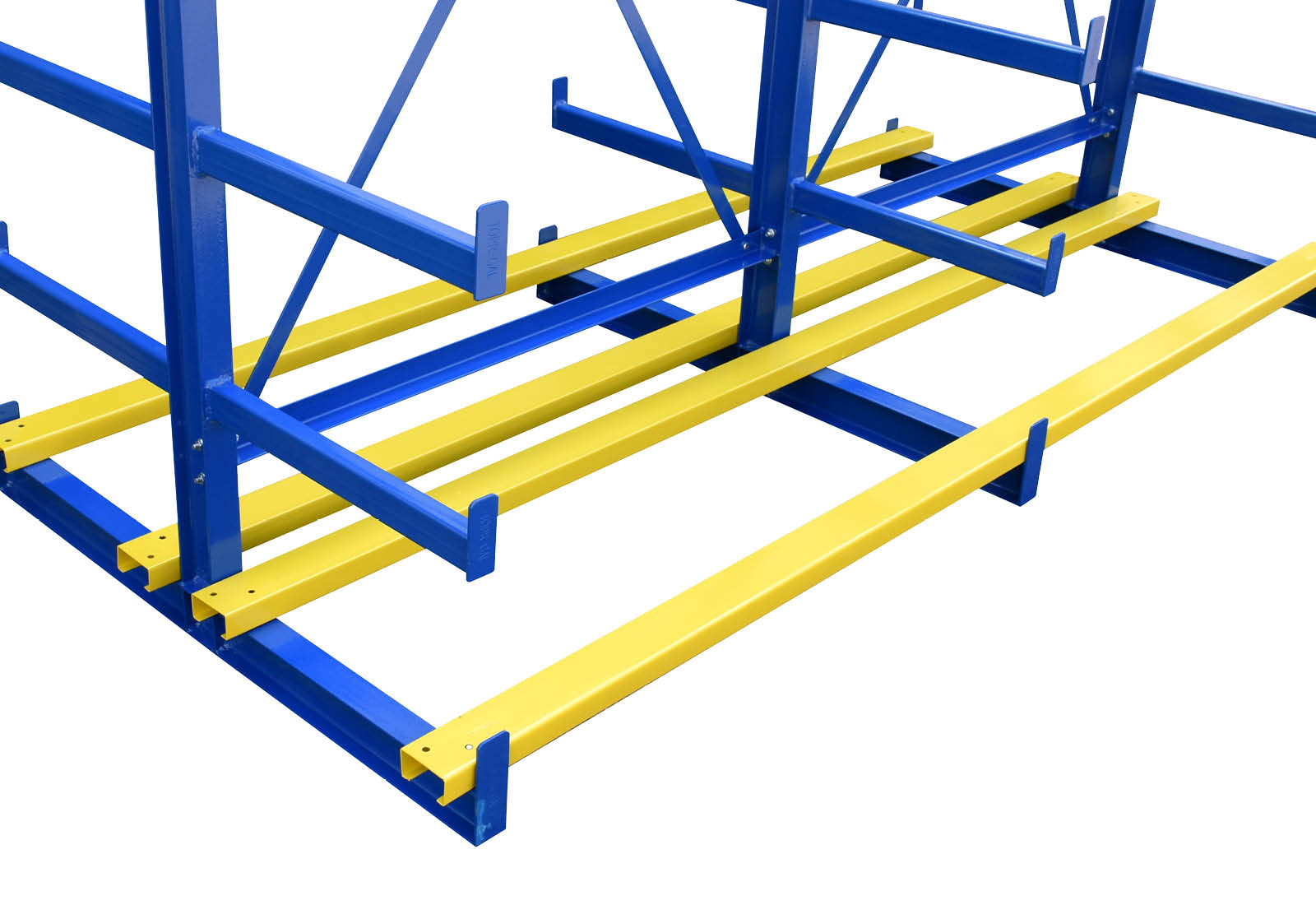

The add-on consists of a 78 3/4" upright with ten fully welded cantilever arms (five on each side) featuring a 19 11/16" arm depth and a usable depth of 19 1/2" on each side, a 44 1/2" continuous base, and 47 1/4" bracing to support the overall structure.
Easy Assembly and Integration in Your Warehouse
- Fully welded cantilever arms reduce assembly time and the number of components needed.
- Durable steel construction provides long-lasting stability and reliable rack expansion.
- Straightforward installation with all necessary mounting bolts included.
- Reinforced upright connections with horizontal and diagonal bracing for added structural support.
- Secure floor anchoring ensures proper stability and safe material handling.
Additional Details
- Assembly instructions included
- Capacity labels available upon request
- Double-sided KR2500 starter units sold separately
Extend your double-sided KR2500 cantilever rack efficiently and cost-effectively with this add-on unit.
For configuration assistance, capacity labels, or precise measurement guidance tailored to your installation, please contact our team.
